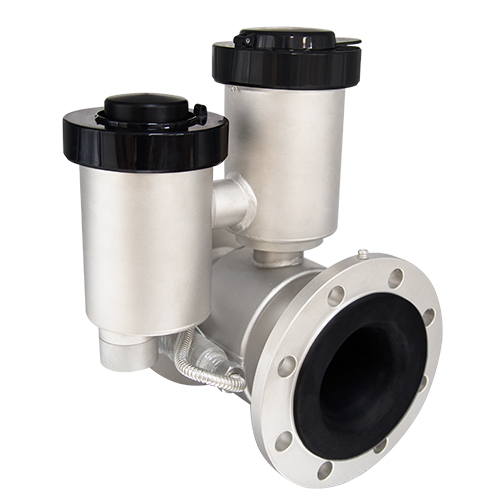

MAG-AX electromagnetic water meter (flow and pressure remote transmission type)
The Anxin® MAG-AX electromagnetic water meter is a specially designed metering instrument to meet the practical requirements of water supply and usage enterprises. It can optimize water supply and usage and ensure accurate trade metering and settlement. It complies with the new standard (GB/T778.1-2007) and is the first electromagnetic water meter in China to pass the assessment based on the new standard. With a unique all-stainless-steel housing design, it can be used in highly polluted and corrosive environments, meeting the domestic water meter usage environment. The sensor adopts a full-pass structure, with zero pressure loss and no wear; it boasts an ultra-large range ratio, superior sensitivity to small flow rates, and superior measurement of large flow rates, far surpassing other water meters. The Anxin® MAG-AX electromagnetic water meter has a reliable working time of over ten years, making it the best equipment for large user metering and regional metering (DMA). It helps water supply enterprises improve water supply recovery rates, reduce leakage, lower the level of non-revenue water, and is the best choice for water supply and usage enterprises to upgrade their metering systems.
Product Features
- Integrated design of flow, pressure, and remote transmission
- Long-term reliable operation, with a built-in 3.6V lithium battery, eliminating the need for external power supply
- The sensor features a fully open structure, resulting in no pressure loss and a long service life
- Easy to install and calibrate* Wide measurement range, zero pressure loss
- One-time buckle structure, with no visible screws on the outside, effectively preventing water theft
- Protection level: IP68
- Third-generation intelligent converter, featuring fault self-diagnosis and alarm.
- The sensor is designed with all stainless steel, providing better corrosion resistance and magnetic interference resistance
Intelligent converter alarm function：
- Disconnection alarm
- Air traffic control alarm
- Circuit fault, open circuit, and broken circuit alarms
- Battery overvoltage alarm
- Traffic upper and lower limit alarm
- Flow mutation alarm
- Pressure upper and lower limit alarms
- Pressure mutation alarm.
|
Basic model |
remote flow transmission type |
Remote type with flow pressure |
RS485type |
pipe diameter |
DN50-300 |
DN50-300 |
DN50-300 |
DN50-300 |
direction |
bidirectional measurement |
bidirectional measurement |
bidirectional measurement |
bidirectional measurement |
measurement parameters |
Instantaneous flow and cumulative flow |
Instantaneous flow and cumulative flow |
Instantaneous flow and cumulative flow |
Instantaneous flow and cumulative flow |
precision |
Ilevel、2level |
Ilevel、2level |
Ilevel、2level |
Ilevel、2level |
pressure range |
1.0、1.6、4.0MPa |
1.0、1.6、4.0MPa |
1.0、1.6、4.0MPa |
1.0、1.6、4.0MPa |
conductivity |
purified water>20us/cm |
purified water>20us/cm |
purified water>20us/cm |
purified water>20us/cm |
medium temperature |
0-70℃ |
0-70℃ |
0-70℃ |
0-70℃ |
lining |
Safety and hygiene rubber |
Safety and hygiene rubber |
Safety and hygiene rubber |
Safety and hygiene rubber |
Protection level |
IP68 |
IP68 |
IP68 |
IP68 |
power supply |
lithium battery3.6V |
lithium battery3.6V |
lithium battery3.6V |
lithium battery3.6V |
output signal |
none |
wireless remote transmissionGSM/GPRS/CDMA |
Wireless remote transmission, pressure remote transmission |
RS485signal |
Installation method |
flanged |
flanged |
flanged |
flanged |
structure |
Integrated type, split type |
Integrated type, split type |
Integrated type, split type |
Integrated type, split type |
display unit |
cumulative flow：m³ instantaneous flow rate：m³h
|
cumulative flow：m³ instantaneous flow rate：m³/h
|
cumulative flow：m³ instantaneous flow rate：m³/h pressure value：MPa |
cumulative flow：m³ instantaneous flow rate：m³/h
|
Best Application |
It directly replaces the water meter, with no wear and tear, no pressure loss, reduced leakage, and improved efficiency |
Elevating the management of meter reading and measurement results to a process management level, promptly and effectively identifying and eliminating water theft and leakage, has yielded significant results |
It is simple and convenient to implement pressure monitoring for pipe networks, becoming an intelligent terminal for metering and monitoring, and facilitating the informatization construction of water supply enterprises（SCADA、GIS、Modeling, hydraulic model, and scientific scheduling provide information, with one investment yielding multiple benefits. |
Low-power data output, real-time online data |
