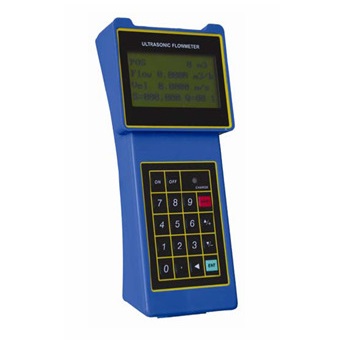

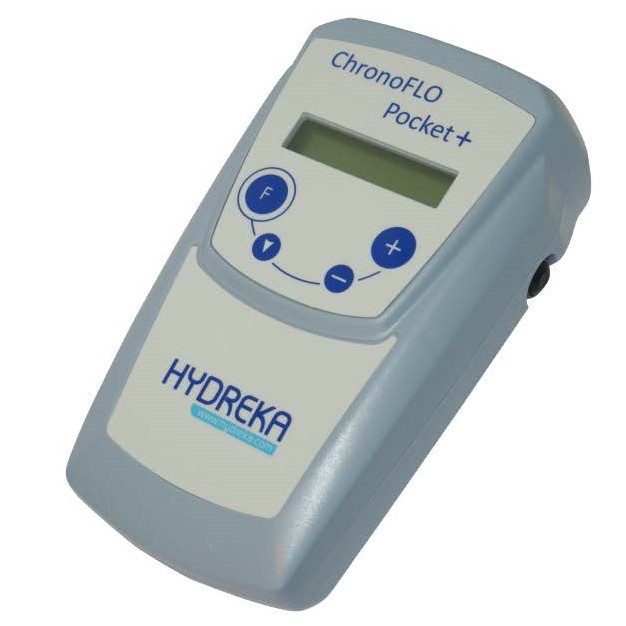

Chronoflo Pocket

Hydreka

The ChronoFLO transit time flow meter can measure instantaneous flow rates in your flow-carrying pipes. This instrument uses a fully coded signal correlation process to obtain stable measurements even under the most challenging conditions. To cover a wide range of applications in any sector, only one signal processing unit is used. This configuration is supplied with two sensors and a mounting rail that fits a wide range of diameters.



The ChronoFLO POCKET is the latest version of our well-known ChronoFLO line of products. Available as a dedicated or a portable version, the ChronoFLO POCKET is an ideal permanent or temporary equipment to monitor flow and volume (metering at different locations on drinking water systems, meter testing…).

KEY APPLICATIONS

  • A wide diameter range from 15 mm up to 6000 mm
  • Rapid installation
  • Compact and ultra light product
  • Display unit: flow, total flow (both directions), velocity and signal quality
  • Built-in data logger

Accuracy

Linearity : < 0.5%, Repeatability: < 0.2%, accuracy : +/- 1%

Outside Diameter range

15 mm up to 6000 mm. Three sets of sensors.

Languages

Selectable: English or Italian

Ingress Protection

central unit: IP20; Sensors with BNC connectors: IP 20

Power Supply

3 AAA Built-in rechargeable NI-MH batteries, provide over 12 hours of continuous operation. Charger 100-240 VAC + adapter.

Dimensions and Weight

210 x 90 x 30 mm; Weight: 0.5 Kg

Large LCD Display

4x16 characters for real-time flow, Total Flow (Positive, Negative and Net), Velocity, Status etc…

Communications

RS232

Data Logger

Built-In 24 K Data Logger. Can store over 2000 lines of data

Standard Configuration

1 Hand-held Unit; 2 sets of clamp-on sensors; Transducer Cables; 2 Stretcher (3 meters); 1 Data Line; 1 Power Cord; 1 Carrying Case
